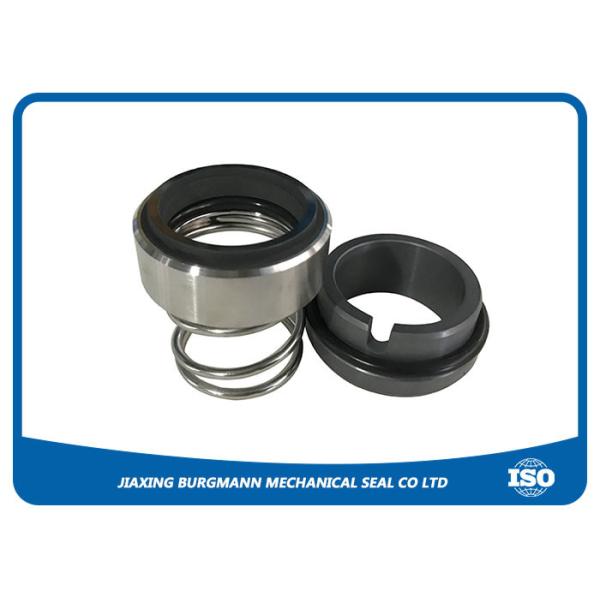

◆ Conical spring,unbalanced,O-ring pusher construction
◆ Torque transmission via conical spring, independent of direction
of rotation
◆ Wide option in seal face material
◆ Spring with deep coils to reduce the risk of clogging in solids
content or viscous liquids
This mechanical seal meet with the standard EN12756 (DIN24960),
simple structure, wide application, good reliability.
Suitable for applications in water pumps, sewage pumps, submerged
pumps, and chemical flow pumps, etc.
Operating Limited:
| Shaft diameter | 6~80mm |
| Pressure | up to 1Mpa |
| Temperature | -20~250°C |
| Slidingvelocity | 15m/s |
Material:
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316 |
| Stationary Ring | Car / SIC /TC/Cer |
Advantages:
• Spring unit averted from the product so no sticking and clogging
of the springs
• Safe operation (no fractures) because of seal face locking by
square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design
Application:
• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps
